MPEG-H Audio Monitoring
Selection of the Language & the Audio Configuration
-> To display the language and audio configuration selection menu, click on the Source thumbnail on the top left of the application.

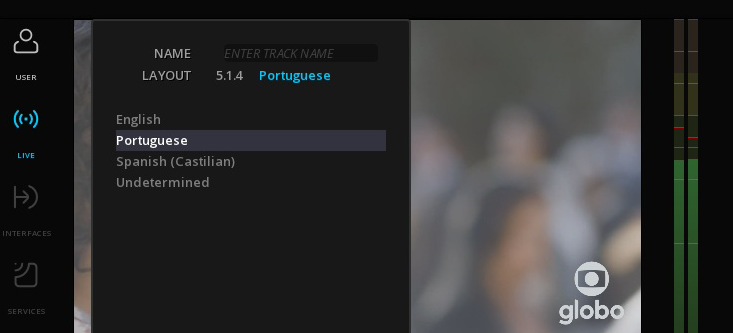

Change the Language
-> To change the audio language, click on the default language to display the choice of available languages for this content.
Modify the Audio Layout
-> To change the audio rendering configuration, click on the default Layout.
Selection of the Presets

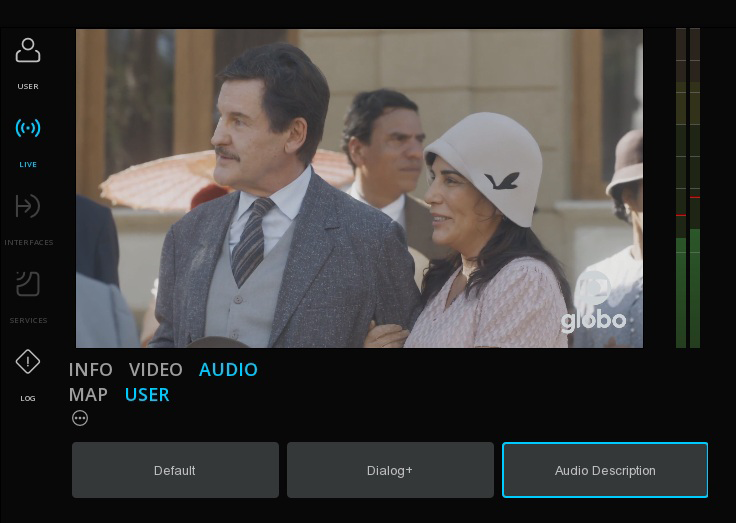

The AUDIO > USER tab allows the choice of the MPEG-H Presets available in a signal.
-> Click on the preset to select it:

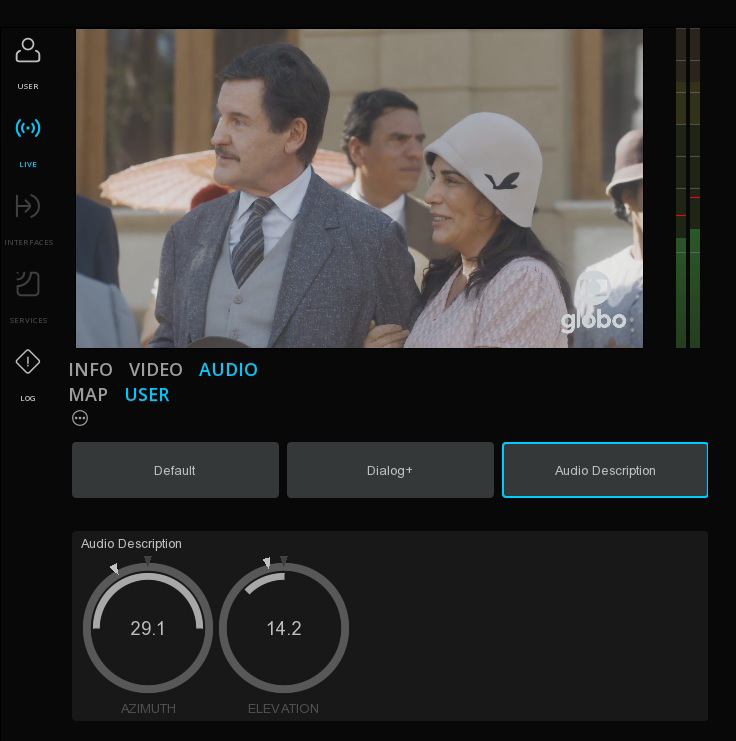

If Interactivity controls are available for a preset, they will be displayed below the Presets:

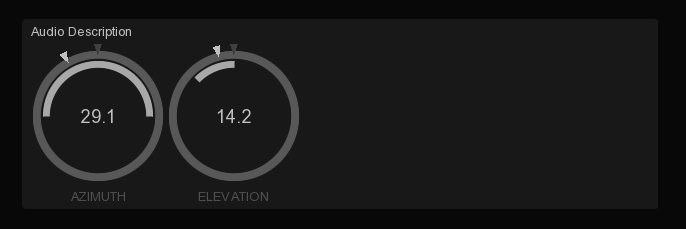

Interactivity Controls
-> To change the gain or the position for an audio element, click in the middle of the control on the number value and move the mouse left or right to decrease or increase the value.
- The white triangle on the external part of the control indicates the actual level, while the grey triangle shows the default position.
- The white internal line display the allowed range for interactivity.

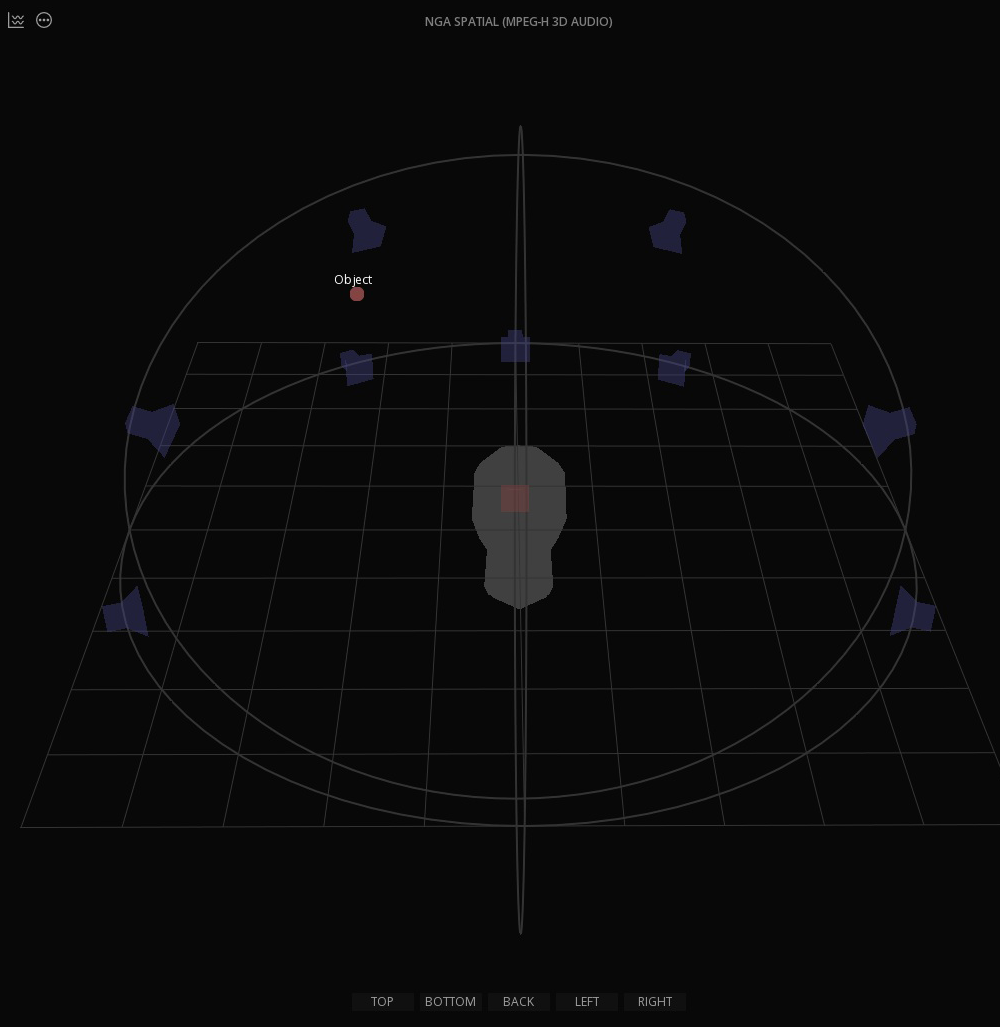

You can verify the change of positioning on an audio element using the scope NGA Spatial:
