Scopes set up

By default, ICE Live opens with a set of scopes, that you can easily modify to monitor the different aspects of the audio and the video signal.

Select a Scope Layout

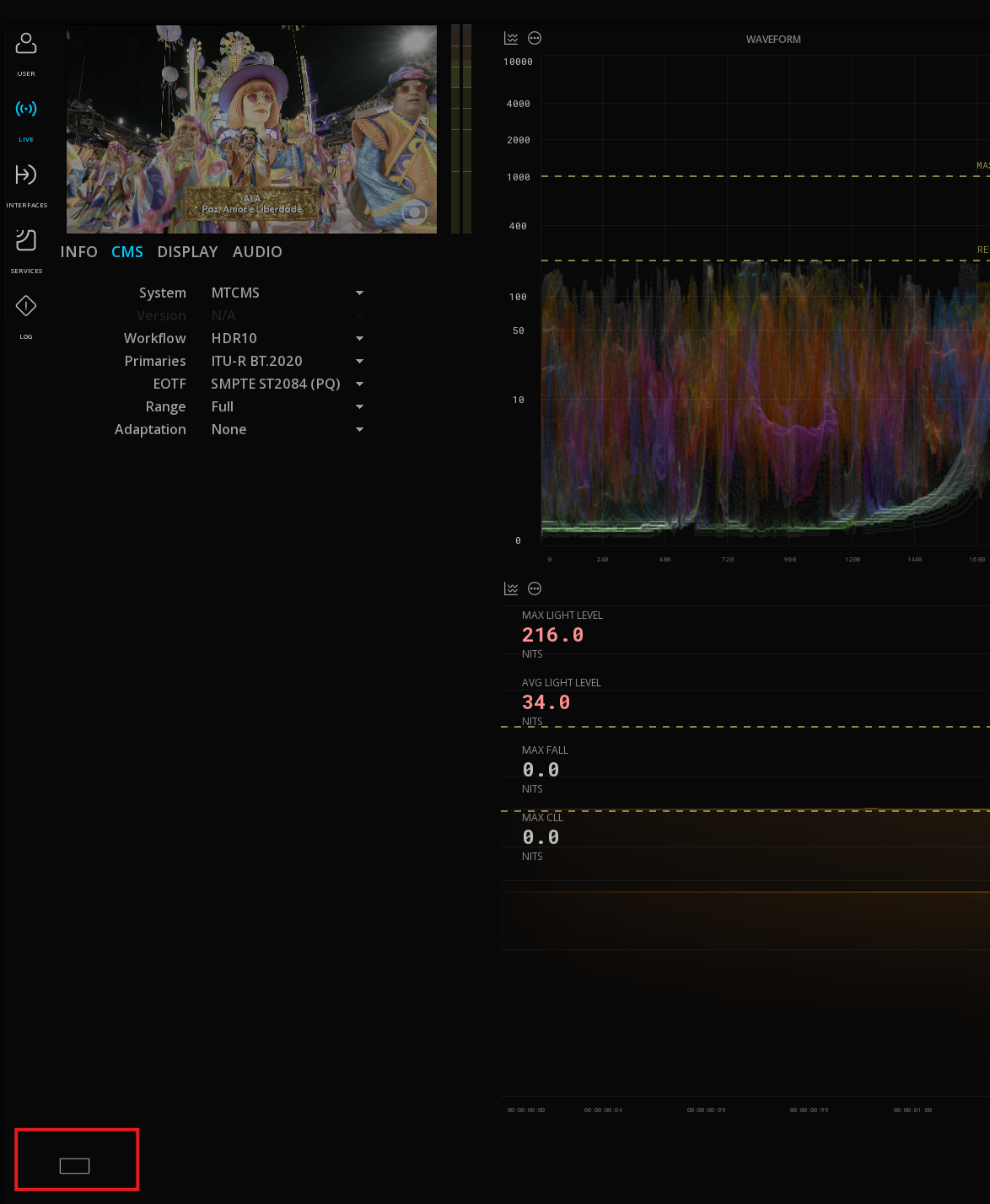

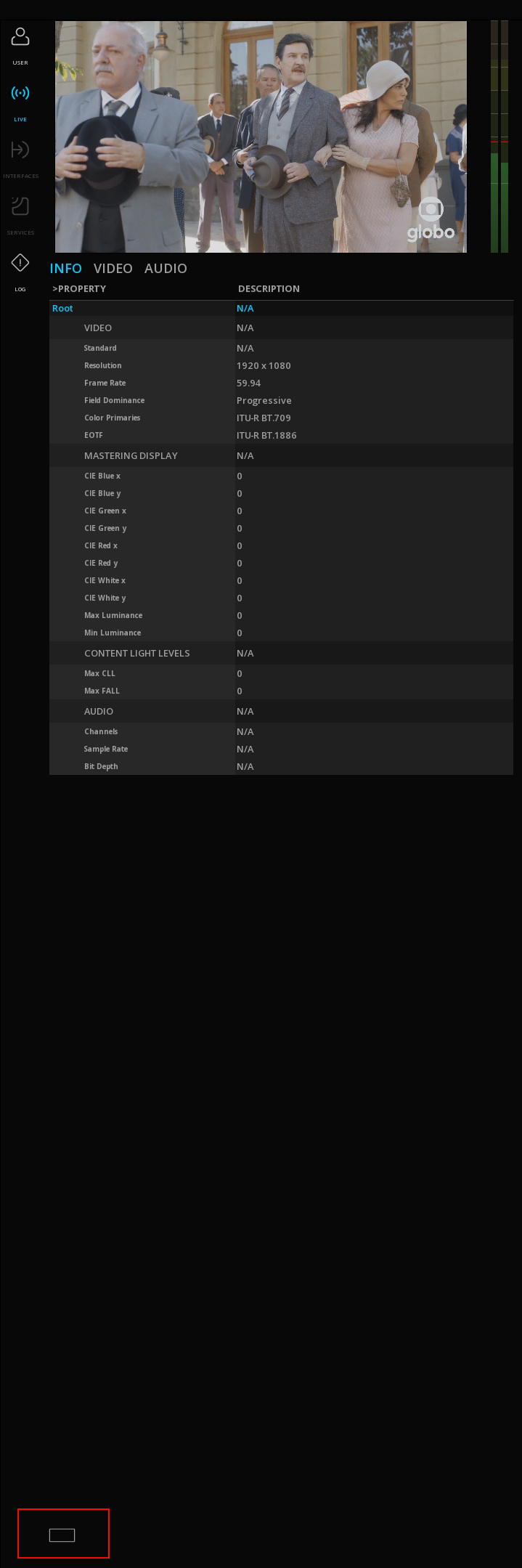

To modify the number of scopes displayed, click on the Scope Layouts icon at the bottom left of the application:

Select the desired type of Scope Layout:

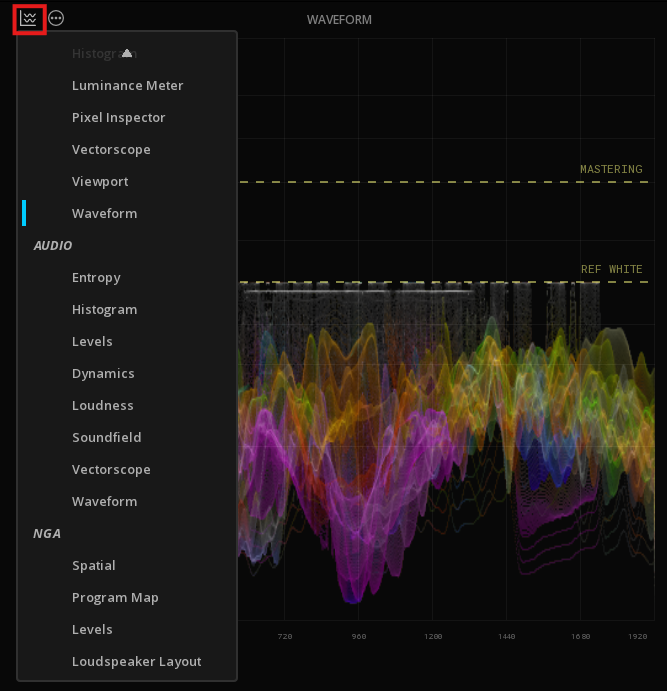

To assign a Scope to a scope location in the Layout, click on the

Scope icon and select a Video, Audio or NGA Scope to display:

Click on the

Scope Options icon to display the different styles and options for each scope.
