VIDEO Scopes
Image Viewport
This scope is displaying the actual image of the input signal.
Features

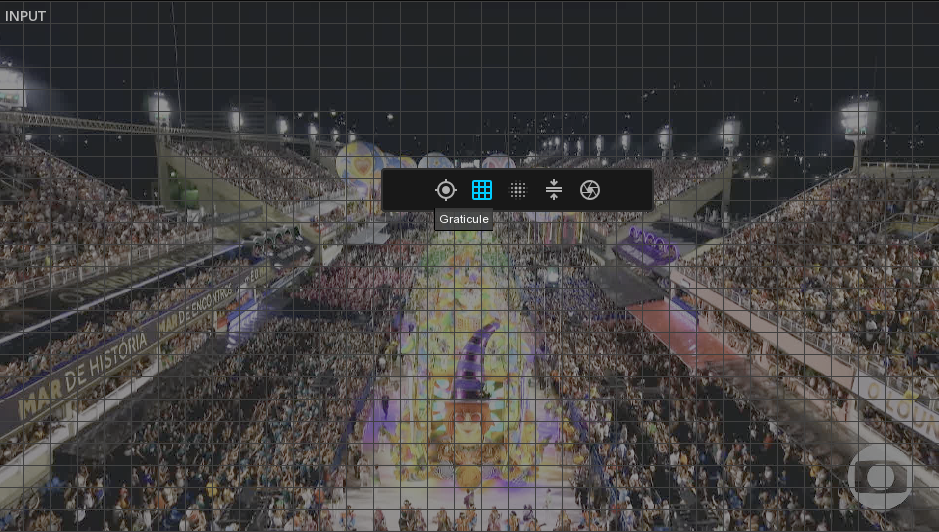

- Image viewport guides
- Canvas: shows image Format
- Grid: display a grid to inspect the subtitles alignement
- Axis : display the image Center
- Active Area: shows the image area, independently of the signal format
- Safe Frames: shows Action and Title safe areas according to the Active Area chosen.

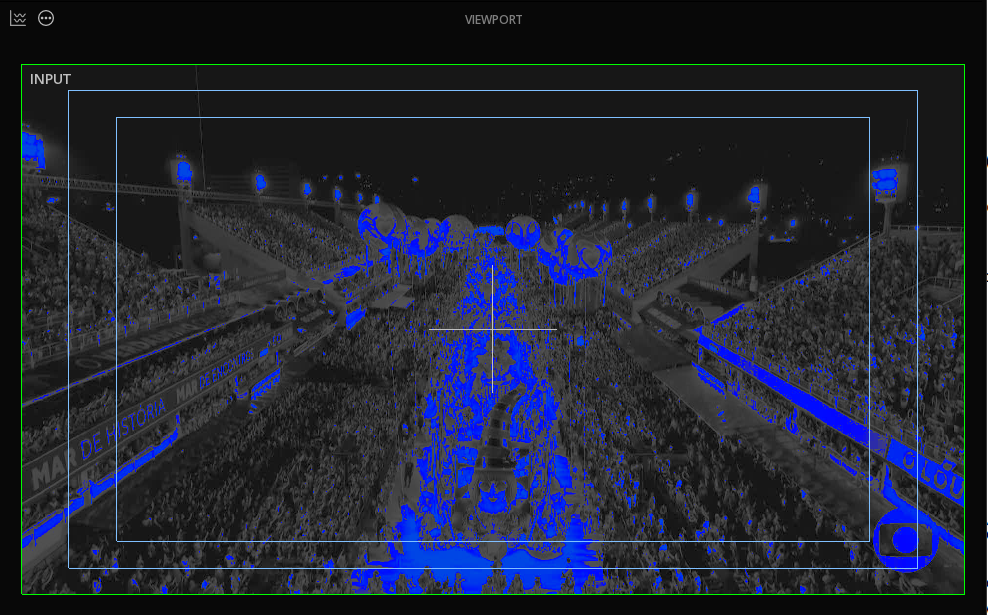

- Zebra mode
- Display the Luminance heat map
